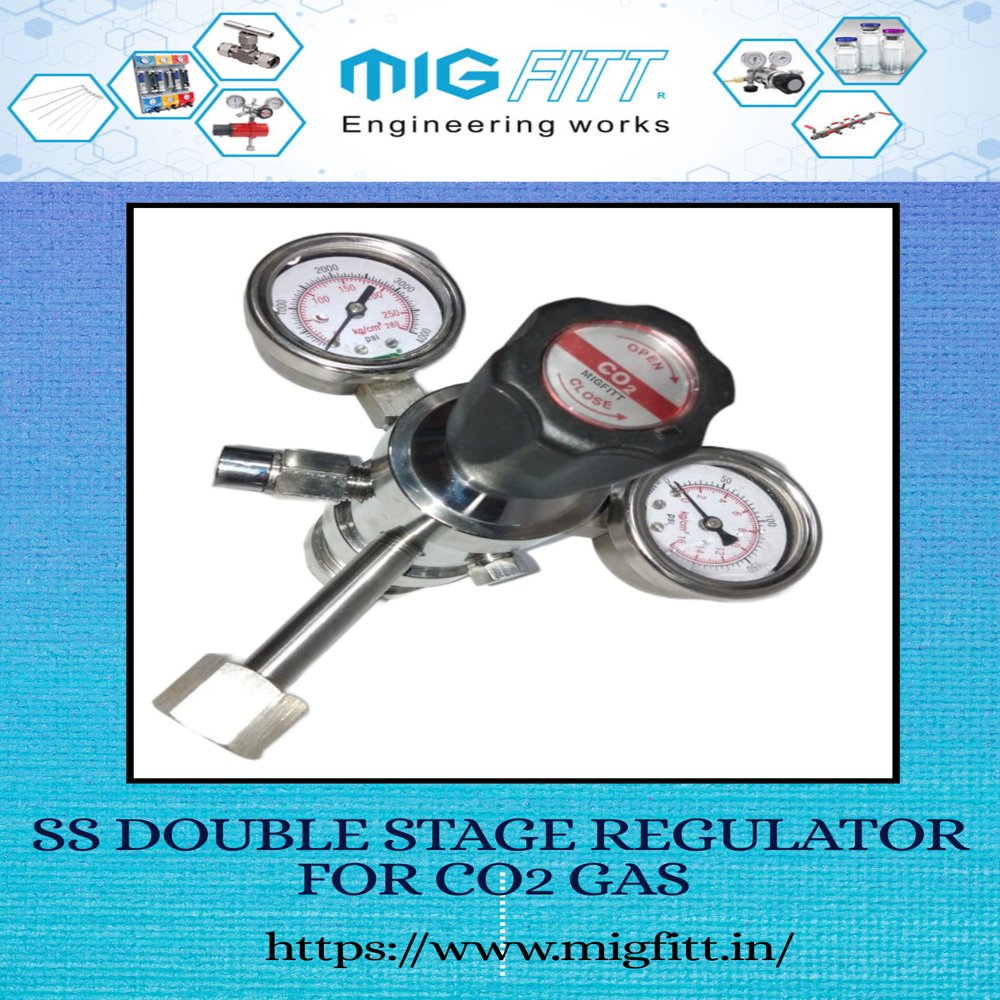

CO2 Pressure Gas Regulators

Name: CO2 Pressure Gas Regulators
Brand: MIG FITT ENGINEERING WORKS
Price: 4950.0 INR
Availability: InStock

Price 4950.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

CO2 Pressure Gas Regulators Specification

Gas Type
Carbon Dioxide (CO2)

Technics
Forged and Machined

Features
Pressure Gauge, Easy Installation, Leak Proof Design, Fine Adjustment

Product Type
CO2 Pressure Gas Regulator

Material
Brass Body, Stainless Steel Parts

Usage & Applications
Regulates and controls CO2 gas pressure from high-pressure cylinders

Outlet Size
1/4 inch BSP (standard)

Flow Rate
0-30 LPM

Pressure Range
0-10 bar (Outlet), 0-250 bar (Inlet)

Metal Type
Other

Application
Industrial Gas Supply, Beverage Industry, Welding, Laboratories

Size
Standard (customized as required)

Weight
1.5-2 kg (approx.) Kilograms (kg)

Packaging
Individual Box Packing

Adjustment Type
Screw Knob for Precise Control

Diaphragm Material
EPDM/NBR Rubber

Safety Valve Included
Yes

Mounting Type
Cylinder Mounted

Dual Gauge Design
Inlet and Outlet Pressure Monitoring

Finish
Chrome Plated

Operating Temperature Range
-10C to +60C

Inlet Connection
G 5/8"-14 (BSP) - compatible with most CO2 cylinders

CO2 Pressure Gas Regulators Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
10 Days

CO2 Pressure Gas Regulators About

CO Gas Regulator

A CO Gas Regulator is a precision device used to reduce and control the pressure of carbon dioxide (CO) gas from a high-pressure cylinder to a safe, usable level for various industrial, beverage, laboratory, and welding applications. It ensures consistent flow and reliable performance in systems where CO gas is used.

Key Features:

Material Construction:
Typically constructed from chrome-plated brass or stainless steel (SS316) for corrosion resistance and compatibility with CO gas.
Regulation Type:
- Single-stage regulator for general use
- Dual-stage regulator for more stable outlet pressure when inlet pressure varies
Pressure Ratings:
- Inlet Pressure: Up to 20003000 psi
- Outlet Pressure: Adjustable, commonly in ranges like 030 psi, 060 psi, or 0100 psi
Flow Control:
Optional integrated flowmeters for precise delivery in applications like carbonation or plant growth systems.
Gauges:
Equipped with dual pressure gauges to monitor both cylinder (inlet) and outlet pressures.
Inlet Connection:
Compatible with CGA 320 (USA) or other regional standards like BS 3/8" for CO cylinders.
Outlet Connection:
Standard 1/4" NPT, barbed, or BSP threads for connecting to downstream systems.
Safety Features:
- Integrated pressure relief valve
- Non-return valve (optional) to prevent backflow
- Leak-proof sealing with PTFE or Viton gaskets

Applications:

Beverage industry (carbonation systems, soda fountains, beer kegs)
Welding & cutting (as shielding gas)
Plant growth systems (greenhouses, hydroponics)
Fire suppression testing
Laboratory and industrial gas delivery

Dual Gauge Accuracy for Enhanced Monitoring

Stay informed at a glance with dual pressure gauges that clearly display both inlet and outlet CO2 pressures. This allows operators to maintain consistent gas flow and ensure safety during use, whether in industries, laboratories, or beverage operations.

Robust Construction and Leak-Proof Design

Engineered from forged brass and precision-machined stainless steel, the regulator promises durability and reliability in demanding environments. The EPDM/NBR rubber diaphragm ensures tight sealing, while a chrome-plated finish provides excellent corrosion resistance.

Versatile Applications and Simple Installation

Suitable for industrial gas supply, beverage carbonation, laboratory control, and welding, this regulator mounts directly onto CO2 cylinders. Its G 5/8"-14 (BSP) inlet and 1/4 inch BSP outlet ensure broad compatibility, and individual box packing guarantees safe delivery.

FAQ's of CO2 Pressure Gas Regulators:

Q: How do I install the CO2 pressure gas regulator on my cylinder?

A: Mount the regulator by attaching the inlet connection (G 5/8"-14 BSP) securely to the CO2 cylinder valve. Tighten with a suitable wrench to ensure a leak-proof fit, and use the screw knob to adjust the desired output pressure after installation. Always check for leaks before use.

Q: What is the benefit of a dual gauge design in this CO2 regulator?

A: The dual gauge design allows you to monitor both the cylinder's remaining pressure (inlet) and the pressure being delivered to your equipment (outlet), providing precise control and enhancing operational safety across applications.

Q: When should the safety valve be used or checked?

A: The safety valve is an integral safety feature that automatically releases excess pressure to prevent regulator or system over-pressure. It should be inspected periodically as part of routine maintenance, especially before critical operations.

Q: Where can this CO2 gas regulator be used?

A: This regulator is ideal for a range of applications, including beverage carbonation in restaurants, gas supply in laboratories, industrial operations, and welding processes-essentially any environment requiring controlled CO2 delivery.

Q: What process ensures the regulator's leak-proof operation?

A: A combination of a precision-forged brass body, stainless steel components, and an EPDM/NBR rubber diaphragm guarantees tight seals. Each regulator is quality tested and individually packaged to maintain integrity until installation.

Q: How do I adjust the outlet pressure?

A: Use the screw knob on the front of the regulator to gradually increase or decrease the outlet pressure. Refer to the outlet gauge to set the pressure within the 0-10 bar range as required for your specific application.
