Dairy Fittings

• Application
• other, Milk, Beverage, Pharma, Food Industry

• Coating Type
• NA (Polished Stainless Steel)

• Color
• Silver

• Connection
• Other, Welded / Tri-Clamp / Threaded

• Connection Type
• Butt Weld / Tri-Clamp / Threaded

• Diameter
• Customized as required

• Flexibility
• Rigid

• Length
• Standard / Customizable

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25 mm - 102 mm

• Product Type
• Other, Dairy Four Way Cross

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (EPDM/Silicone, for clamp type)

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, DIN, SMS, IDF, ISO

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -20C to +180C

• Tensile Strength
• 515 MPa (SS304)

• Thickness
• 1.5 mm - 3 mm

• Thread Type
• BSP / NPT (if applicable)

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food Processing, Beverage

• Yield Strength
• 205 MPa (SS304)

• Application
• other, Dairy pipelines, Food processing, Pharmaceutical pipelines

• Bend Radius
• 1D to 1.5D

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Welded / Tri-Clamp / Threaded

• Connection Type
• Welded, Clamped

• Diameter
• 1 to 4

• Flexibility
• Rigid

• Length
• Customized / Standard

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1 to 4 (25.4 mm to 101.6 mm)

• Product Type

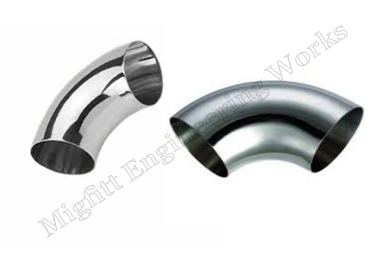

• Other, Dairy Elbow

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Using Gasket (where applicable)

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, DIN, SMS, 3A

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -40C to 200C

• Tensile Strength
• 515 MPa (min for SS304)

• Thickness
• 1.5 mm to 3 mm

• Thread Type
• NA / As per specification

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food & Beverage Processing

• Yield Strength
• 210 MPa (min for SS304)

• Application
• other, Dairy, Food Processing, Beverage, Pharmaceutical

• Bend Radius
• Fixed

• Color
• Silver

• Connection
• Other, Clamp Fitting

• Connection Type
• Tri-Clamp

• Diameter
• 1/2 inch, 1 inch, 2 inch, 3 inch, 4 inch, 6 inch

• Flexibility
• Rigid

• Length
• Standard/Custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 6 inch

• Product Type
• Other, Dairy Triclover Clamp

• Rated Pressure
• 10 bar (max)

• Sealing Type
• Gasketed Joint (EPDM/Silicone/PTFE gasket)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, DIN / SMS / ISO / 3A

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 530 MPa

• Thickness
• 2 mm to 5 mm

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food, Beverage, Pharmaceutical piping connection

• Yield Strength
• 210 MPa

• Application
• other, Process Piping, Milk Transfer, Food Processing

• Bend Radius
• As per standard Tee angle

• Coating Type
• None / Plain

• Color
• Silver

• Connection
• Other, Tri-Clamp, Welded, Threaded

• Connection Type
• Butt Weld, Clamp, Threaded

• Diameter
• Customized or Standard

• Flexibility
• Rigid

• Length
• Customized as per requirement

• Material
• Stainless Steel

• Material Grade
• SS304, SS316, SS316L

• Outer Diameter
• 1 inch to 6 inch (25.4 mm to 152.4 mm)

• Product Type

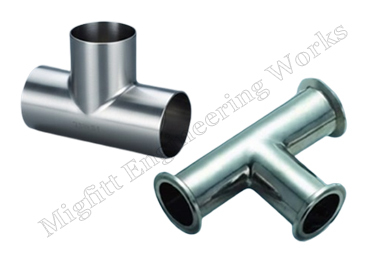

• Other, Dairy Tee

• Rated Pressure
• Up to 10 Bar

• Sealing Type
• Gasket (if clamped)

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, DIN, SMS, ISO, 3A, IDF

• Surface Treatment
• Other, Polished / Mirror Finish

• Temperature Range
• -20C to 180C

• Tensile Strength
• >=515 MPa (for SS304)

• Thickness
• 1.5 mm to 3 mm

• Thread Type
• BSP, NPT (if threaded)

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food & Beverage Industries

• Yield Strength
• >=205 MPa (for SS304)

• Application
• other, Dairy Tanks, Food & Beverage Processing

• Coating Type
• Uncoated / Polished

• Color
• Silver

• Connection
• Other, Threaded / Welded

• Connection Type
• Threaded BSP / Welded

• Diameter
• 25 mm to 100 mm (various sizes available)

• Flexibility
• Rigid

• Length
• Varies by model

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 25 mm, 38 mm, 50 mm (varies as per model)

• Product Type
• Other, Spray Ball

• Rated Pressure
• up to 5 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Spherical

• Standard
• Other, DIN / 3A / SMS

• Surface Treatment
• Other, Polished

• Temperature Range
• -10C to 120C

• Tensile Strength
• >520 MPa

• Thickness
• 1.5 mm

• Thread Type
• BSP

• Tolerance
• 0.05 mm

• Usage
• CIP (Clean-In-Place) systems, Dairy Cleaning

• Yield Strength
• >205 MPa

• Application
• other, For connecting pipes of different diameters in sanitary piping systems

• Coating Type
• None (polished finish)

• Color
• Silver

• Connection
• Other, Welded / Tri-Clamp / Threaded

• Connection Type
• Socket Weld / Butt Weld / Clamp

• Diameter
• 25 mm - 102 mm

• Flexibility
• Rigid

• Length
• Standard or customizable

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25 mm to 102 mm

• Product Type

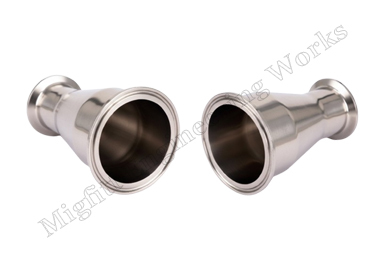

• Other, Dairy Reducer

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (EPDM/Silicone/NBR/PTFE, as required)

• Section Shape
• Round

• Shape
• Other, Reducer (Concentric/Eccentric)

• Standard
• Other, DIN, SMS, 3A, ISO

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• 520 MPa (min, SS304)

• Thickness
• 1.5 mm - 3 mm

• Thread Type
• NA (as per model)

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food, Beverage, Pharmaceutical

• Yield Strength
• 210 MPa (min, SS304)

• Application
• other, Milk, Food Processing, Brewery Pipelines

• Bend Radius
• 1.5D

• Coating Type
• None (Stainless Steel)

• Color
• Silver

• Connection
• Other, Welded/Clamp/Threaded

• Connection Type
• Welded, Clamp, Threaded

• Diameter
• 1 to 4 (25 mm to 104 mm)

• Flexibility
• Rigid

• Length
• Custom As Required

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25 mm to 104 mm

• Product Type

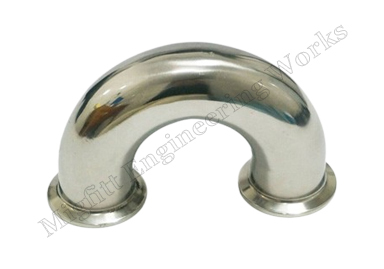

• Other, Dairy Bend

• Rated Pressure
• Up to 10 Bar

• Sealing Type
• Gasket (if Clamp Type)

• Section Shape
• Round

• Shape
• Other, Bend (Elbow)

• Standard
• Other, DIN, SMS, ISO

• Surface Treatment
• Other, Polished (Mirror/Satin)

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa (min, SS304)

• Thickness
• 1.2 mm to 3 mm

• Thread Type
• BSP/NPT

• Tolerance
• 0.1 mm

• Usage
• Dairy, Food and Beverage Industry

• Yield Strength
• 210 MPa (min, SS304)
