Orbit Weld Fittings

• Application
• other, Chemical, Pharmaceutical, Food & Beverage Industries

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 100 mm

• Flexibility
• Rigid

• Length
• 25 mm

• Material
• Stainless Steel

• Material Grade
• 304/316L

• Outer Diameter
• 150 mm

• Product Type
• Other, Orbital Welding Flange

• Rated Pressure
• PN16 / 150 lbs

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASME B16.5, DIN, EN1092-1

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to 230C

• Tensile Strength
• 515 MPa

• Thickness
• 8 mm

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting, Process Industries

• Yield Strength
• 205 MPa

• Application
• other, Plumbing, Gas Pipeline, Water Supply

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Screwed

• Diameter
• 12 mm - 110 mm

• Flexibility
• Rigid

• Length
• Custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 1/2 Inch to 4 Inch

• Product Type
• Other, Pipe Union Cross

• Rated Pressure
• 150 PSI

• Sealing Type
• Metal to Metal Seal

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, ASTM / DIN / JIS

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa

• Thickness
• 5 mm

• Thread Type
• BSP / NPT

• Tolerance
• 0.1 mm

• Usage
• Industrial Pipe Fitting

• Yield Strength
• 205 MPa

• Application
• other, Industrial, Hydraulic, Pneumatic, Plumbing

• Coating Type
• Nickel Plated

• Color
• Silver

• Connection
• Other, Threaded/Compression

• Connection Type
• Push Fit/Compression

• Diameter
• 6 mm - 20 mm

• Flexibility
• Rigid

• Length
• 30 mm - 60 mm

• Material
• Brass

• Material Grade
• CW617N / Equivalent

• Outer Diameter
• 6 mm - 20 mm

• Product Type

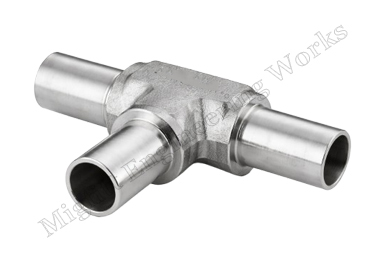

• Other, Union Tee

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Metal-to-Metal / PTFE Sealing

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ISO 9001:2015

• Surface Treatment
• Other, Nickel Plated

• Temperature Range
• -20C to 120C

• Tensile Strength
• 350 MPa

• Thickness
• Customizable

• Thread Type
• BSP/Metric

• Tolerance
• 0.02 mm

• Usage
• Fluid & Air Transmission

• Yield Strength
• 250 MPa

• Application
• other, Pipe joining, reducing and distribution

• Bend Radius
• Standard as per fitting size

• Color
• Metallic Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• Varies as specified

• Flexibility
• Rigid

• Length
• Standard Fitting Size

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Pipe Fittings - Reducing Tee

• Rated Pressure
• Up to 400 bar

• Sealing Type
• Metallic Seal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASME B16.9 / ASTM A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 600C

• Tensile Strength
• 550 MPa (minimum)

• Thickness
• Schedule 40 - Schedule 80

• Thread Type
• Not Applicable (Butt Weld)

• Tolerance
• 0.25 mm

• Usage
• Plumbing, Oil & Gas, Chemical Processing

• Yield Strength
• 205 MPa (minimum)

• Application
• other, Dairy, Food Processing, Beverage, Pharmaceutical Industries

• Bend Radius
• Fixed

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Welded Joint

• Diameter
• 25 mm

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 25 mm

• Product Type

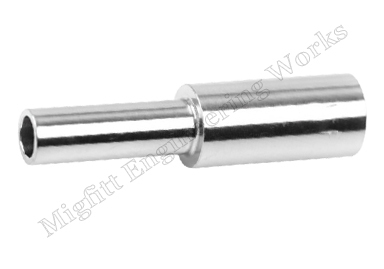

• Other, Nozzle Orbit Weld

• Rated Pressure
• Up to 16 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM / ASME

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• 520 MPa

• Thickness
• 2 mm

• Tolerance
• 0.1 mm

• Usage
• Industrial piping and tank fittings

• Yield Strength
• 210 MPa

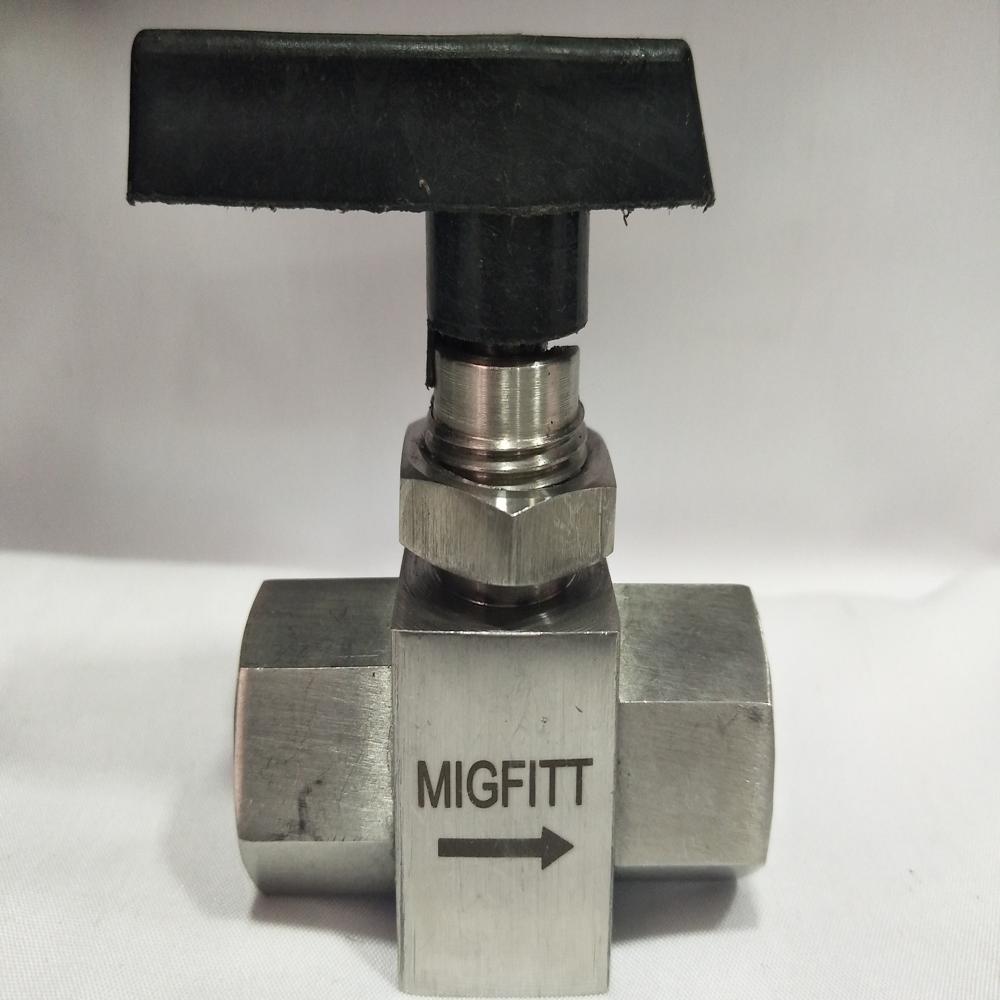

• Application
• other, Water, Oil, Gas, Chemical Flow Control

• Coating Type
• Nickel Plated / Epoxy Coated

• Color
• Silver / Yellow / Blue Handle

• Connection
• Other, Screwed / Flanged / Socket Weld

• Connection Type
• Threaded / Flanged

• Diameter
• 15 mm - 300 mm

• Flexibility
• Rigid

• Length
• Custom as per model

• Material
• Other , Stainless Steel / Brass / Cast Iron (as required)

• Material Grade
• SS 304 / SS 316 / Brass CZ121

• Outer Diameter
• 15 mm - 300 mm

• Product Type

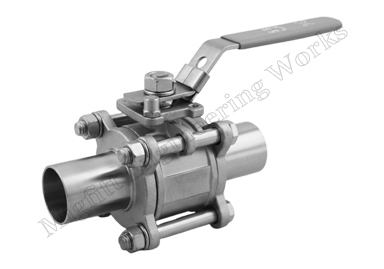

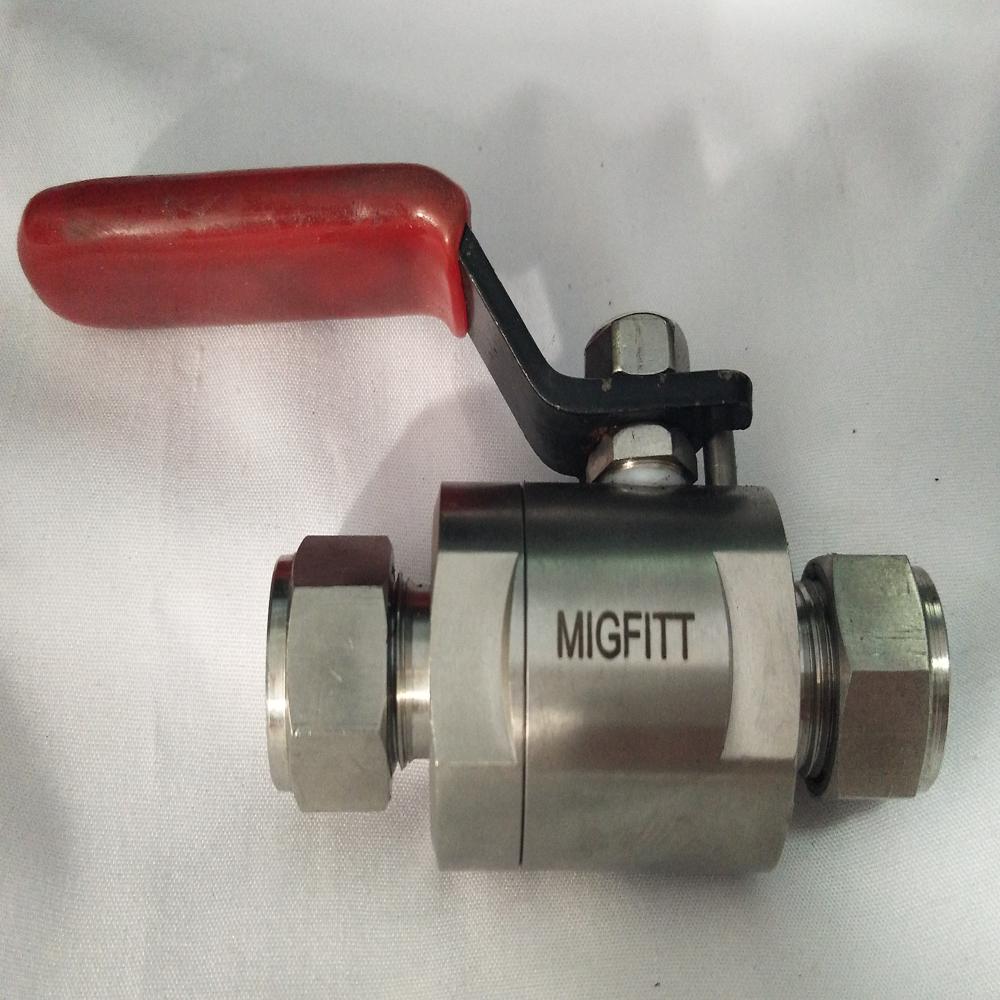

• Other, Ball Valve

• Rated Pressure
• PN10, PN16, PN25, up to 40 bar

• Sealing Type
• PTFE / NBR Seals

• Section Shape
• Other, Cylindrical

• Shape
• Other, Round / Spherical

• Standard
• Other, ISI / ASTM / DIN

• Surface Treatment
• Other, Polished / Coated

• Temperature Range
• -10C to +180C

• Tensile Strength
• 400 - 620 MPa

• Thickness
• 3 mm - 10 mm

• Thread Type
• BSP / NPT

• Tolerance
• 1% or as specified

• Usage
• Industrial / Plumbing / Water, Oil & Gas

• Yield Strength
• 250 - 300 MPa

• Application
• other, Oil & Gas, Chemical, Petrochemical, Power Plant, Water Supply

• Bend Radius
• As per standard

• Color
• Metallic Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 1/2 inch to 48 inch

• Flexibility
• Rigid

• Length
• As per requirement

• Material
• Stainless Steel

• Material Grade
• 304/316/316L

• Outer Diameter
• 1/2 inch to 48 inch

• Product Type
• Other, Welding Reducer

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 600C

• Tensile Strength
• 520 MPa

• Thickness
• 2 mm - 12 mm

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa

• Application
• other, Industrial, Plumbing, Gas and Water Supply

• Bend Radius
• Fixed

• Coating Type
• No Coating

• Color
• Silver

• Connection
• Other, Threaded

• Connection Type
• Screw Thread

• Diameter
• 25 mm

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 25 mm

• Product Type

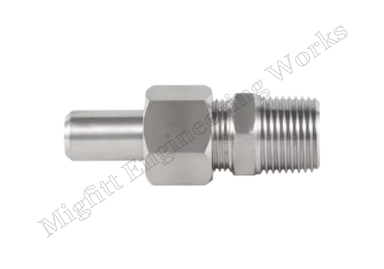

• Other, Threaded Connector

• Rated Pressure
• 16 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 515 MPa

• Thickness
• 5 mm

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting and Plumbing

• Yield Strength
• 205 MPa

• Application
• other, Plumbing, Industrial Piping, Chemical Industries

• Bend Radius
• 1.5D

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 2 Inch

• Flexibility
• Rigid

• Length
• 75 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 50 mm

• Product Type
• Other, Welding Elbow

• Rated Pressure
• Up to 40 Bar

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa

• Thickness
• 5 mm

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting

• Yield Strength
• 205 MPa
