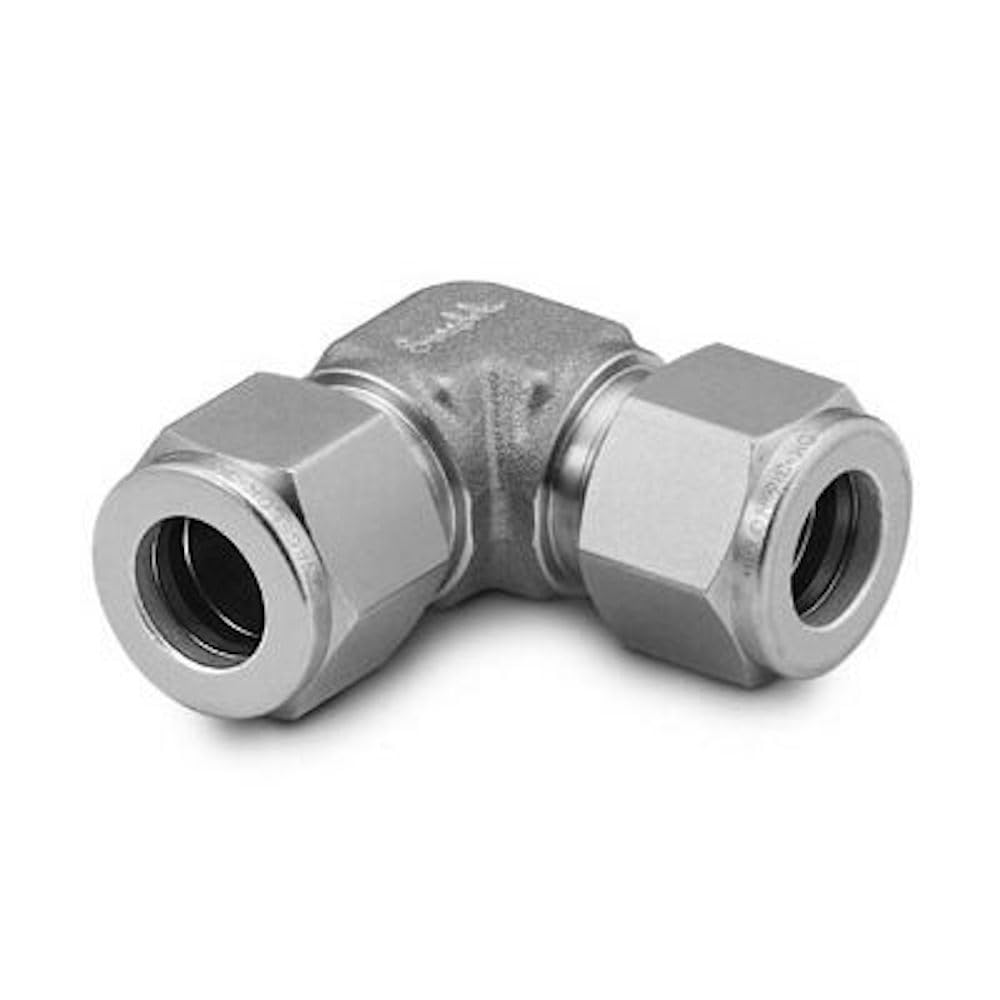

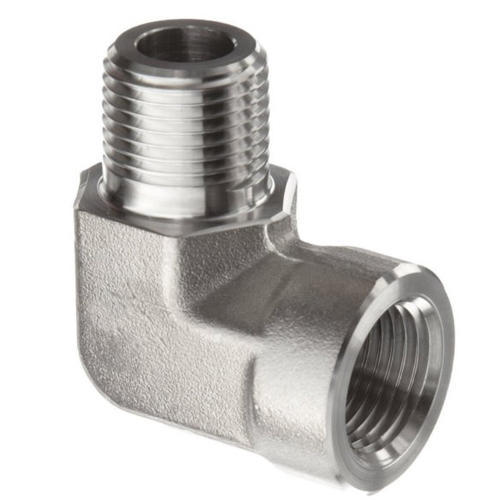

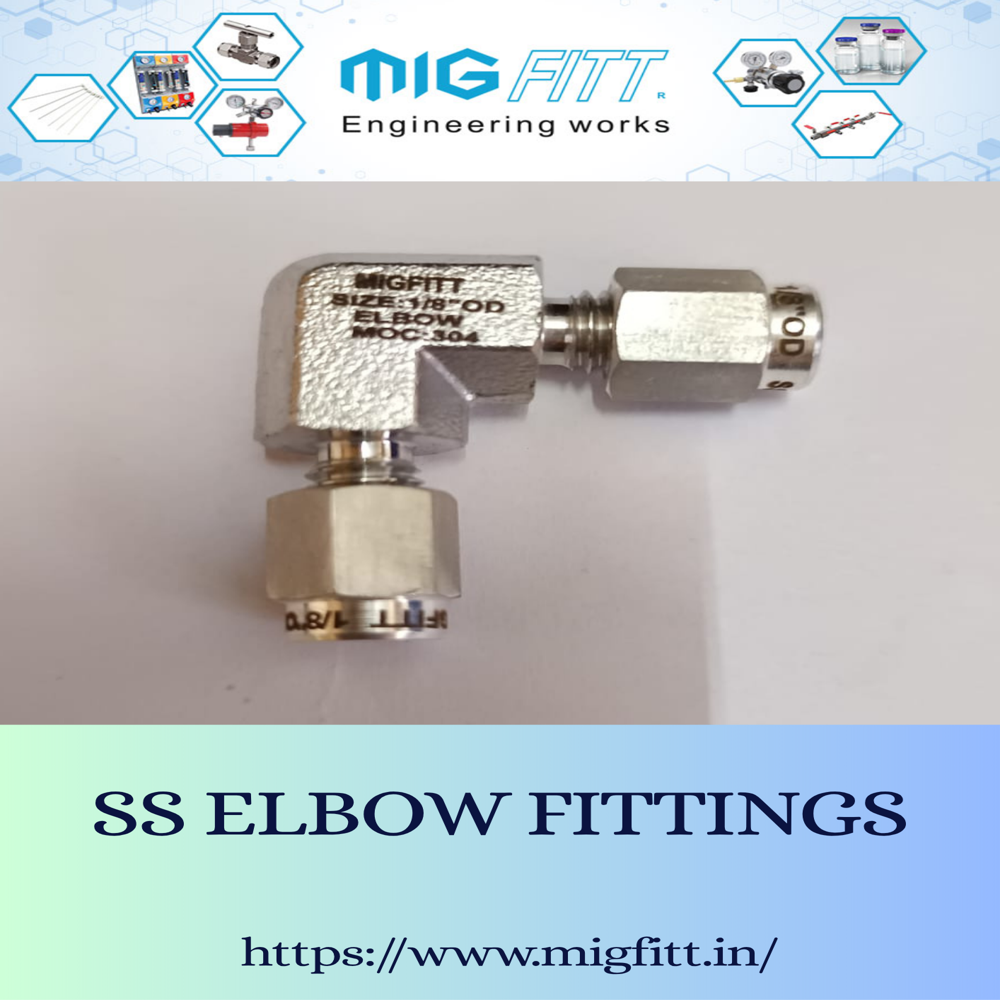

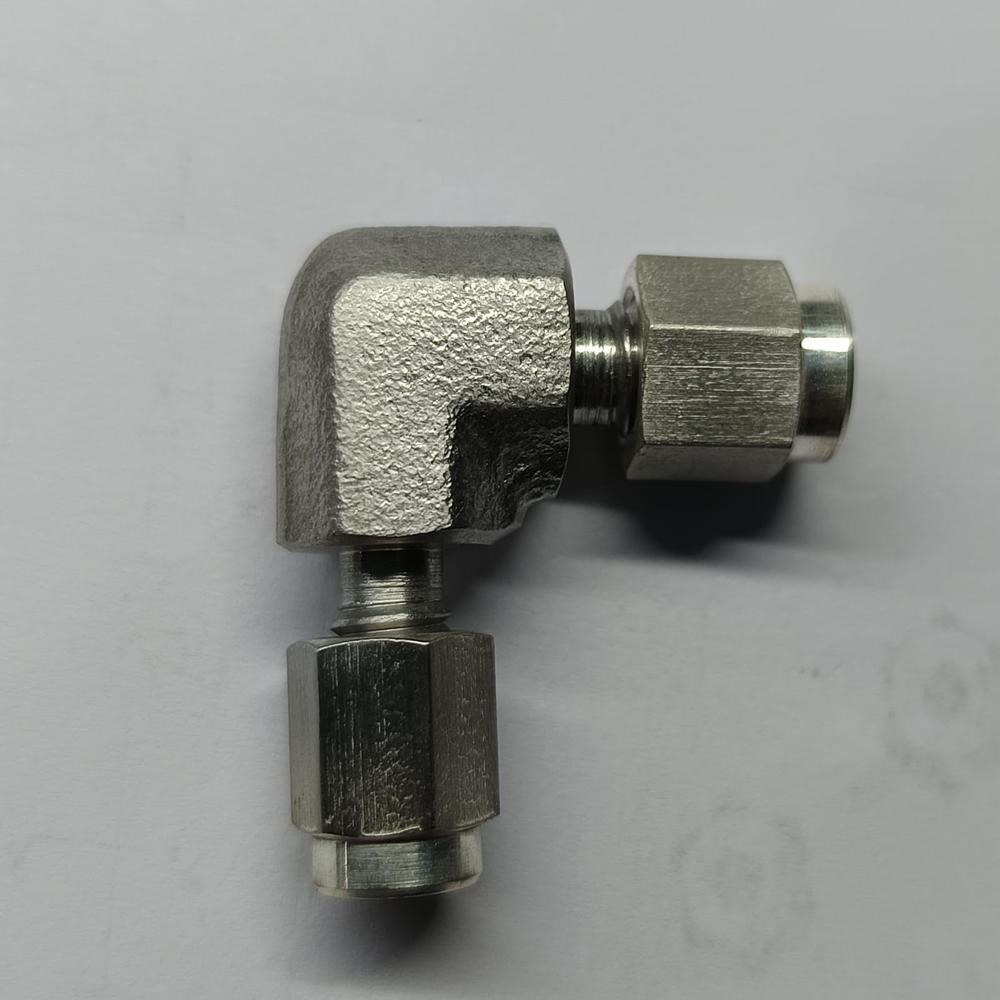

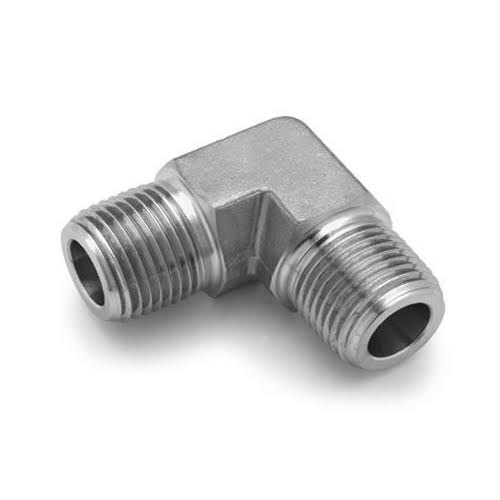

Union Elbow

Get a Price/Quote

MOQ : 100 Pieces

Union Elbow Specification

Product Type
Pneumatic Fitting/Union Elbow

Material
Brass

Type
Push to Connect

Shape
Elbow (90 Degree Union)

Technique
Forged

Surface Treatment
Chrome Plated

Standard
ISO, DIN, JIS

Outer Diameter
6 mm to 22 mm

Length
Custom/Standard as per specification

Inside Diameter
1/4 inch to 2 inch

Wall Thickness
1.0 mm to 4.0 mm

Tensile Strength
230 MPa (Approx)

Grade
CW617N

Size
1/4 inch, 3/8 inch, 1/2 inch

Color
Silver

Corrosion Resistance
High

Thread Type
BSPT/NPT Available

Connection Type
Threaded & Push Fit

Design
Compact, Leak-Proof

Feature
Easy Installation, Reusable Fitting

Medium
Air, Water, Non-corrosive Liquids

Maximum Working Pressure
10 bar

Packaging
Box Packed, 10 pcs per box

Operating Temperature Range
-20C to +80C

Usage/Application
Industrial Pneumatic Systems

Union Elbow Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Union Elbow

Get your hands on this rare, gilt-edged Union Elbow for advanced pneumatic needs. Crafted with exquisite attention to detail from forged, chrome-plated brass, it provides enviable corrosion resistance and leak-proof reliability. Designed to operate up to 10 bar within -20C to +80C and suitable for air, water, and non-corrosive liquids. This compact, reusable fitting features threaded and push-fit connections for enviably quick, easy installation. Available in 1/4" to 2" diameters, BSPT/NPT threads, it's ISO, DIN, and JIS standard compliant. Make an advanced purchase today to secure this box-packed industrial solution from a leading manufacturer in India.

Union Elbow: Competitive Advantages and Applications

This union elbow offers primary competitive advantages such as high corrosion resistance, robust tensile strength, and an enviable compact design fit for confined industrial installations. Chrome-plated for long-term performance, it is ideal for pneumatic systems handling air, water, and non-corrosive liquids. The application surface ranges across industrial pipelines, enabling easy push-to-connect or threaded deployment. Simply plug and twist to achieve a secure, leak-proof connection, ensuring reliable system flow and simplified future modifications.

Packaging, Supply, and Export Capabilities

Each union elbow is box-packed in sets of 10, ensuring safe transportation and organized handover at your facility. Our consistent supply ability assures timely fulfillment of bulk orders for domestic and global markets, especially in Europe, the Middle East, and Southeast Asia. As an experienced exporter, manufacturer, and supplier from India, we streamline logistics to minimize lead time and guarantee the secure delivery of your high-quality union elbows, ready for immediate industrial integration.

FAQ's of Union Elbow:

Q: How do I install the Threaded & Push Fit Union Elbow?

A: Installation is straightforward-simply push the tube into the fitting for a secure connection, or screw on for threaded types (BSPT/NPT). Both methods provide a leak-proof seal for various industrial applications.

Q: What are the primary benefits of using a forged brass 90-degree union elbow?

A: The forged brass construction offers gilt-edged durability, high corrosion resistance, and the ability to withstand a maximum working pressure of 10 bar, making it ideal for demanding pneumatic and hydraulic systems.

Q: When should I consider an advanced purchase of this union elbow?

A: An advanced purchase is recommended for enterprises planning industrial upgrades or scheduled maintenance, ensuring you get the rare, high-quality fittings needed without delays, directly from the manufacturer.

Q: Where can the union elbow be applied effectively?

A: This union elbow is best used in industrial pneumatic systems where compact, leak-proof, and reusable fittings are required for air, water, and non-corrosive fluid transport.

Q: What is the process for reusing the union elbow fitting?

A: The reusable design allows you to disconnect the fitting easily, inspect or replace the tube, and reconnect without performance loss-offering enviable flexibility for system maintenance.

Q: How does its box packaging aid transportation and supply?

A: Box packing in quantities of 10 ensures scratch-free, organized storage, easy handling during transportation, and swift handover during large-scale supply operations.
